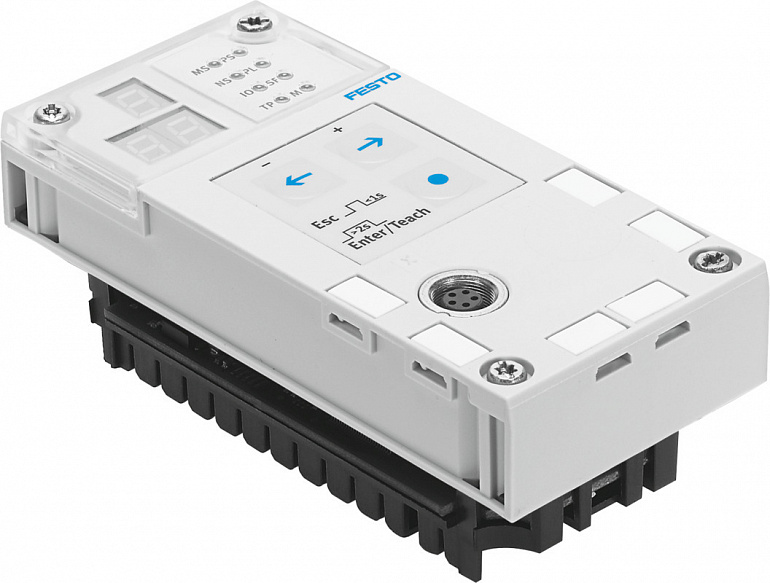

| Technical Data |
|
| Dimensions (W x L x H) |
50 x 107 x 55 mm |
| Diagnosis |
Module-orientated diagnosticsVia local 7-segment display |
| Max. number of modules |
10 |
| Display |
7-segment display |
| Operator controls |
3 keys |
| Operational voltage range DC |
1830 |
| Load voltage range DC |
2030 |
| Nominal operating voltage DC |
24 |
| Nominal load voltage DC |
24 |
| Current consumption at nominal operating voltage |
80 |
| Permissible load current |
2.5 |
| Shock resistance to DIN/IEC 68 Parts 2-29 |
Tested to severity level 2 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Relative air humidity |
5 - 95%Non-condensing |
| Degree of protection |
IP65To IEC 60529 |
| Vibration resistance to DIN/IEC 68 Part 2-6 |
Tested to severity level 2 |
| Ambient temperature |
-550 |
| Product weight |
140 |
| Axes per string |
1 |
| Number of axis strings |
1 |
| Electrical connection control interface |
SocketM95-pin |
| Cable length |
30 |
| Control-Interface |
DigitalCAN bus with Festo protocolIntegrated terminating resistor |
| Material housing |
PA-reinforced |
